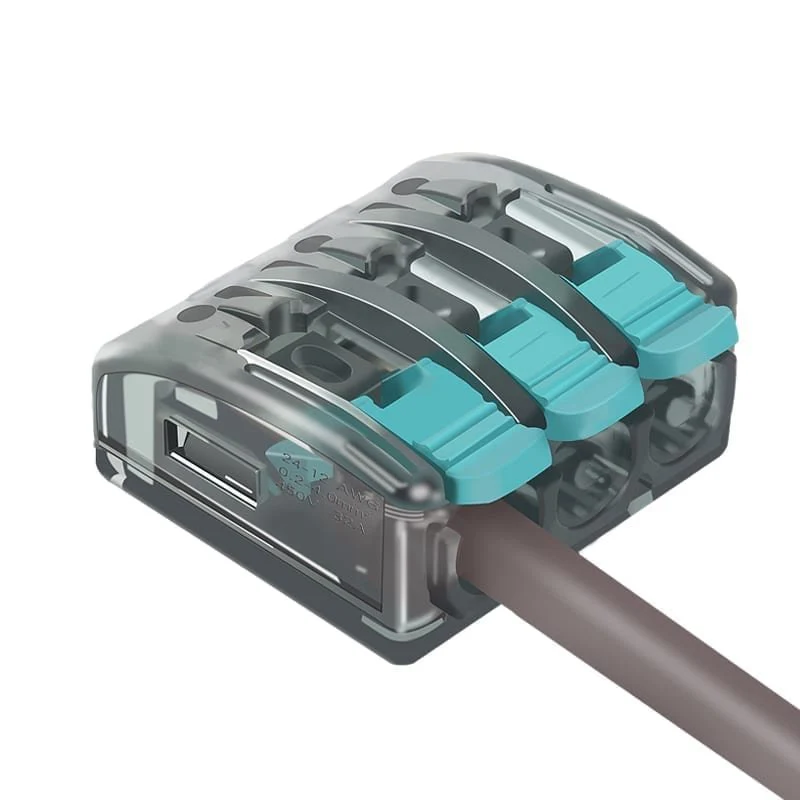

WAGO Type 221 3-Way Connector – 32A, Lever Terminal Block

Description

The WAGO Type 221 3-Way Connector (32A) provides a fast, safe, and tool-free solution for connecting and disconnecting cables. With its compact design and intuitive lever mechanism, simply lift the lever, insert the conductor, and push the lever back down for a secure, vibration-resistant connection every time.

Ideal for both commercial and domestic electrical installations, these connectors ensure reliable performance, reduce installation time, and allow easy inspection through the transparent housing.

Key Features

• Quick and simple lever-action wiring — no tools required

• Compact design with transparent housing for easy inspection

• Reliable and secure cable clamping with copper/tin-plated conductor

• Rated for 32A at 450V

• Suitable for solid, stranded, and flexible wires

• Available in 2, 3, and 5 pole options

Technical Specifications

Electrical:

• Voltage Rating: 450V AC / 600V (UL)

• Current Rating: 32A

• Contact Resistance: ≤ 20 mΩ

• Insulation Resistance: ≥ 1000 MΩ @ 1000V

• Dielectric Strength: 2500V AC for 1 min

Mechanical:

• Wiring Range: 0.2 – 4mm² (24–12 AWG)

• Stripping Length: 10–11mm

• Operating Temperature: -45°C to +105°C

Construction Materials:

• Cover: PC (Polycarbonate)

• Body: PA66 UL94 V-0 (Flame Retardant)

• Spring: SUS 301 Stainless Steel

• Conductor: Copper, Tin-Plated

• Button/Lever: PA66

Applications

• Domestic and commercial electrical installations

• Lighting circuits and junction boxes

• HVAC wiring and control systems

• Test equipment and temporary setups

• Any environment requiring quick, safe, and reusable wiring
