Silicone/Glassfibre 1.00mm2 Cabling SIAF/GL H05SJ-K

Product Specification

This spec covers our SIAF/GL H05SJ-K silicone/glass fibre cable, designed for use in high-temperature environments. This cable is a versatile solution for a wide range of industrial and commercial applications where standard cables would fail.

Key Features

• High-Temperature Resistance: Operates reliably in temperatures ranging from -60°C to +180°C, making it ideal for heated units, lighting, catering equipment, and more.

• Low Smoke & Zero Halogen (LSZH): The cable produces minimal smoke and no corrosive gases when exposed to fire. This makes it a safe choice for enclosed spaces like process plants and industrial applications such as aerospace, packaging, and refrigeration.

• Durable Construction: Features a flexible, stranded core of tinned, nickel-plated copper wire insulated with silicone rubber and protected by a robust glass fibre braid. This design ensures both flexibility and mechanical strength.

• Compliance: Fully compliant with industry standards, including Class 5 DIN VDE 0295 and IEC 60228, ensuring high quality and safety.

Technical Specifications

• Product Name: Silicone/Glass Fibre Cable

• Part Number: SIAF/GL H05SJ-K

• Conductor: Flexible, stranded, tinned, nickel-plated copper wire (Class 5-IEC 228)

• Insulation: Silicone rubber

• Outer Covering: Glass fibre braid

• Voltage Rating (Uo/U):

  • 0.5mm² to 6mm²: 300/500V

  • 10mm² and above: 600/1000V (when protected)

• Temperature Rating:

  • Fixed: -60°C to +180°C

• Minimum Bending Radius:

  • Fixed: 4 x overall diameter

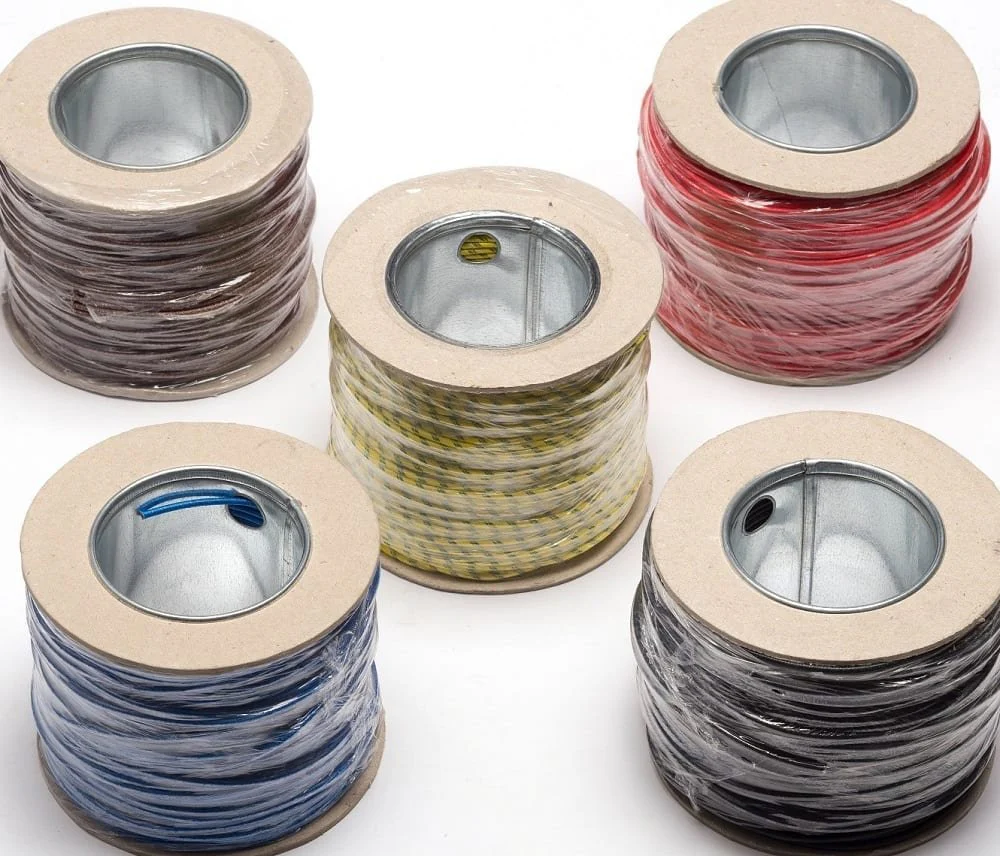

• Spool Length: 100m

• Cable Size: 1.00mm²

This high-performance cable is your go-to choice for manufacturing white goods, industrial machinery, and any application where temperatures exceed 50°C.
