Replacement PEL 22S Flame Failure Gas Control Valve Horizontal
Product Specification Sheet

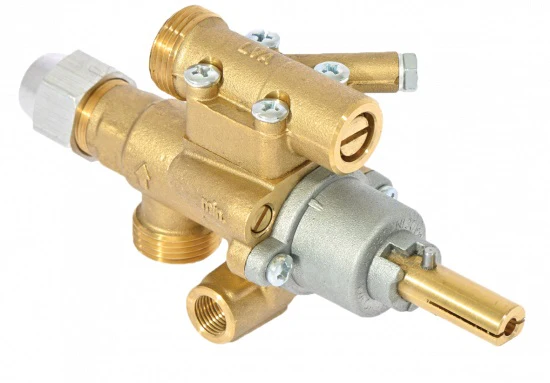

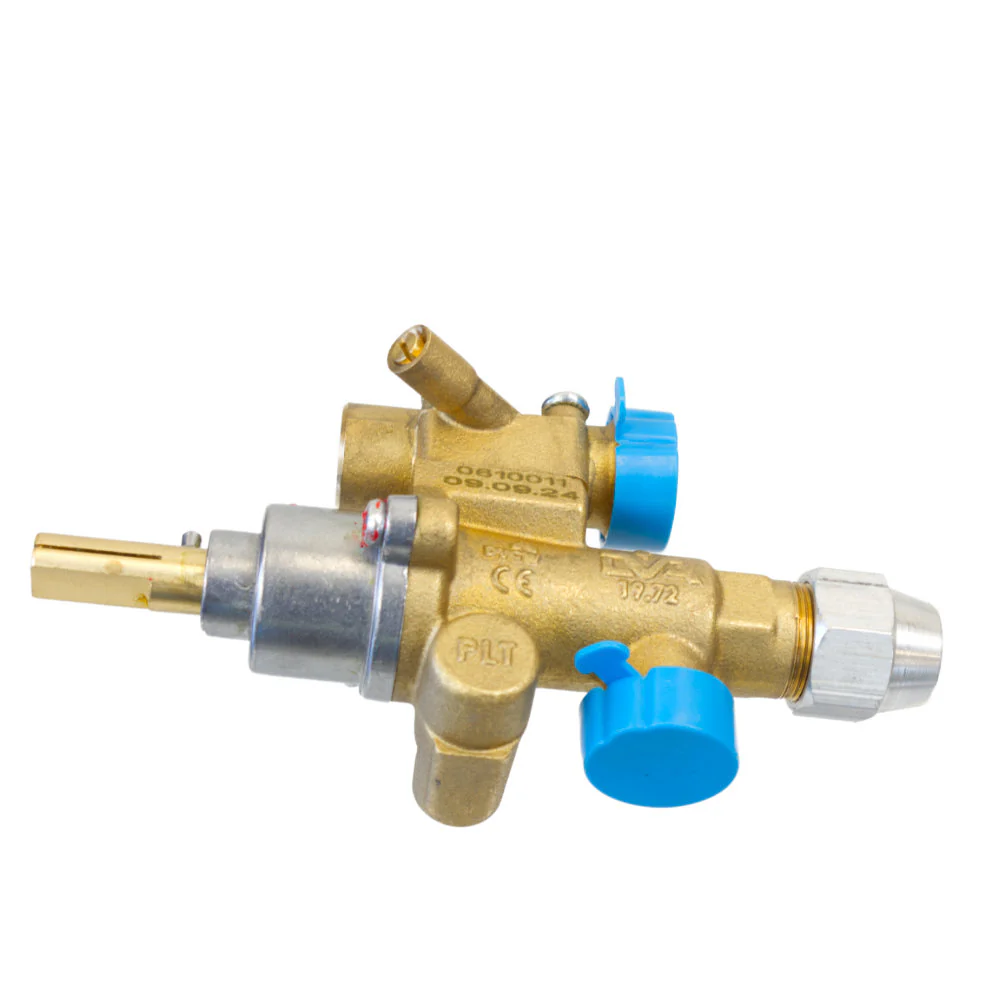

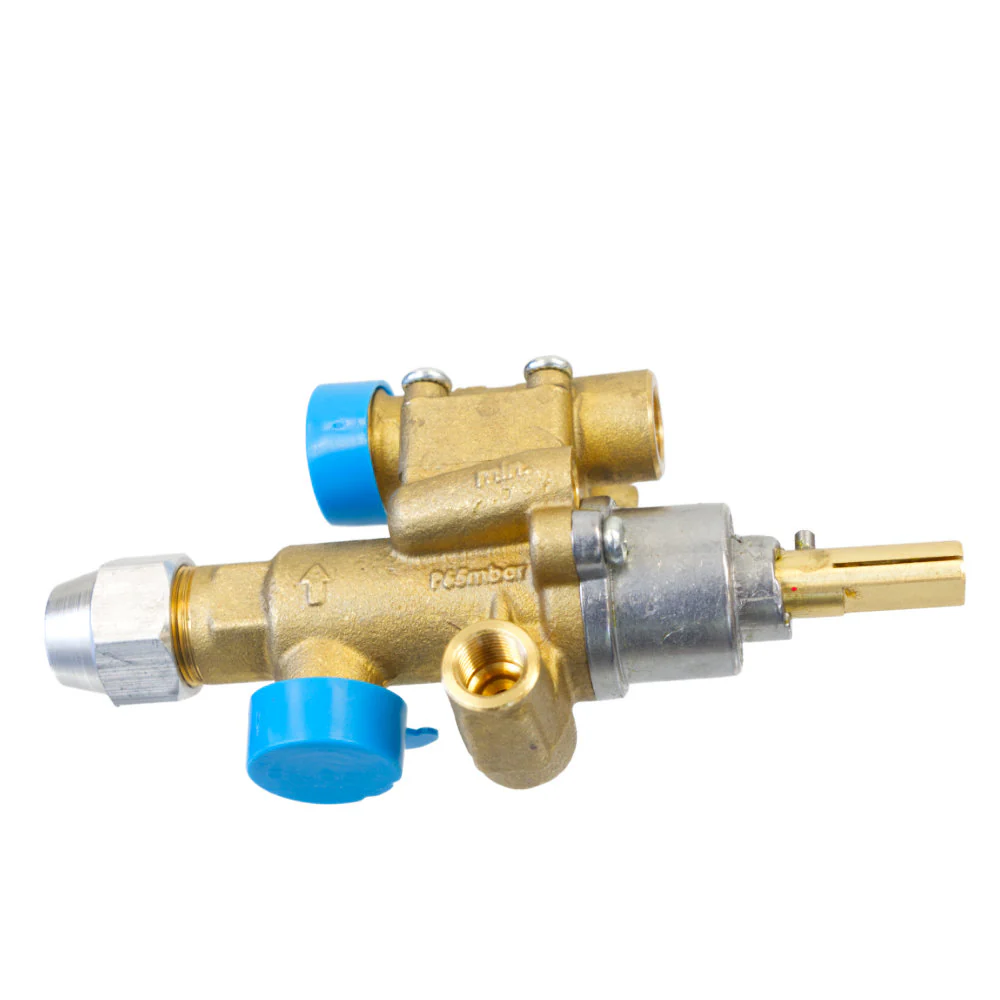

Product Name: Replacement PEL 22S Flame Failure Gas Control Valve – Horizontal
Overview:
The Replacement PEL 22S Flame Failure Gas Control Valve is a safety-critical component designed to control the flow of gas in commercial gas appliances. It automatically shuts off the gas supply in the event of a flame failure, ensuring optimal safety in gas-fired systems. This version is configured for horizontal installation.
Key Features:
-
Flame Failure Protection: Ensures automatic shut-off in case of flame outage.
-
Horizontal Orientation: Designed for horizontal installation in gas appliances.
-
Manual Reset: Safety lockout function with manual reset requirement.
-
Robust Construction: Built with durable, heat-resistant materials for long service life.
-
Universal Fit: Compatible with a wide range of gas cookers, ovens, and heaters.
Technical Specifications:
| Parameter | Value |
|---|---|
| Model | PEL 22S (Horizontal) |
| Gas Type | Natural Gas (NG) / LPG (propane-butane) |
| Inlet Pressure (Max) | 50 mbar |
| Outlet Pressure Range | 3 – 30 mbar |
| Connection Size | ¼" BSP (British Standard Pipe) |
| Orientation | Horizontal |
| Mounting Position | Valve body must remain horizontal |
| Flame Sensor Compatibility | Thermocouple M9 connection (standard) |
| Reset Type | Manual |
| Ambient Temperature Range | -10°C to +60°C |
| Body Material | Zinc Alloy / Brass (varies by model) |
| Seal Material | NBR / EPDM (gas-safe certified) |
| Approvals | CE Certified, EN 125 |
Applications:
-
Commercial catering equipment
-
Space heaters and water heaters
-
Any gas-burning appliance requiring flame failure safety
Packaging & Delivery:
-
Supplied With: Mounting bracket (if applicable), installation instructions
-
Packaging: Individually boxed with protective foam
-
Lead Time: Typically in stock; 1–3 business days for dispatch
Installation & Safety Notes:
-
Must be installed by a qualified gas technician in accordance with local regulations.
-
Always verify thermocouple compatibility.
-
Do not attempt installation on vertical systems – use vertical PEL 22S variant instead.
