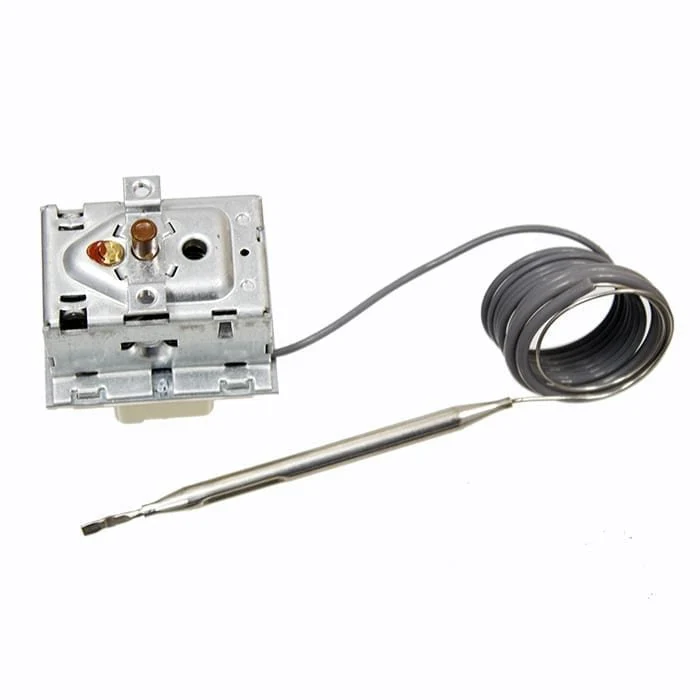

LINCAT TH61 Fryer High Limit Thermostat 230 C

Specification

Switch-off temperature: 230°C
Number of poles: 3
Function: 3NC
Switching capacity: 20A
Probe diameter: 6mm
Probe length: 107mm
Capillary pipe length: 870mm
Starting temperature: 216°C
6 x 6.3mm spade terminals

Where are they fitted?

These Lincat TH61 high limit thermostats are fitted in the circuit of a commercial fryer. They are for safety and protection, they open the circuit should the main thermostat fail therefore preventing the fryer from the danger of overheating.

Compatible Fryers:

OPUS 700 ELECTRIC
Fryers OE7105, OE7108, OE7114
Fryers DF33, DF36, DF39, DF46, DF49, DF66, DF612, DF618, DF69ST, DF612ST, J6, J9, J12, J18 (POST FEB 1997 ONLY)
LYNX 400 ELECTRIC
