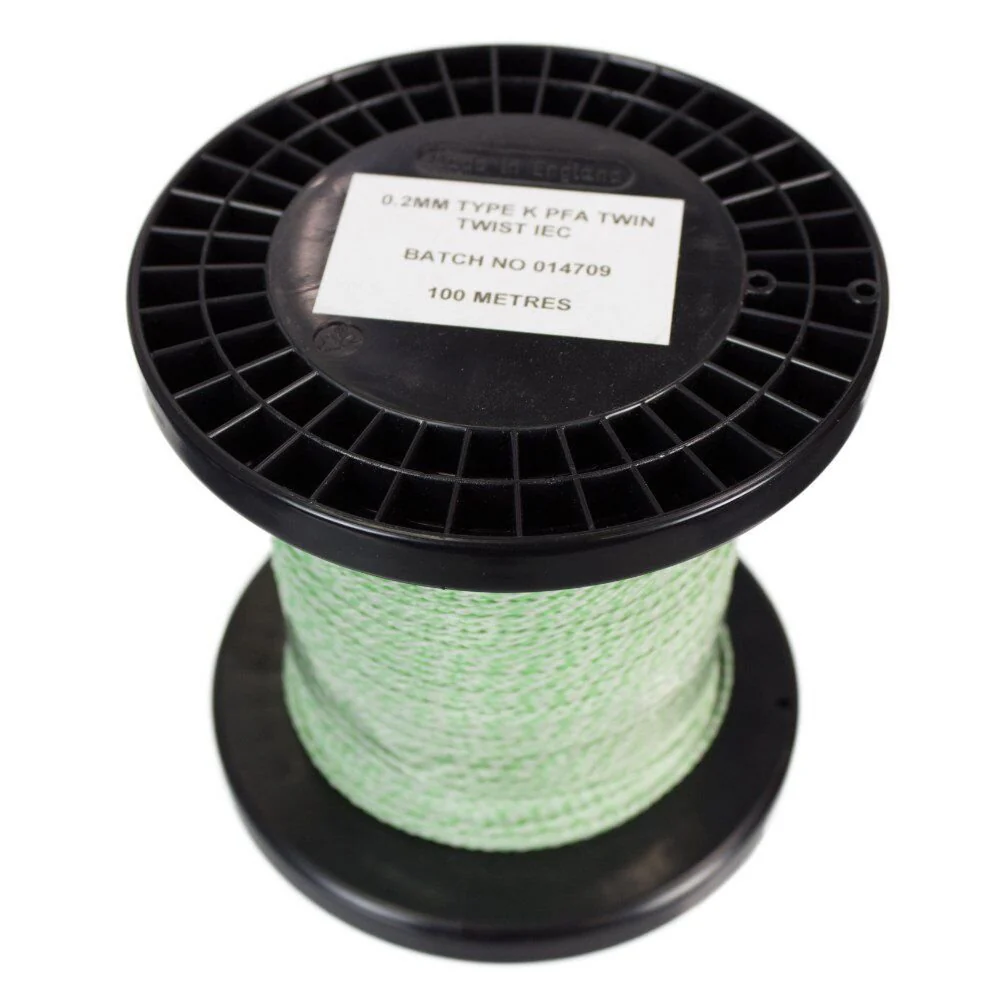

K Thermocouple Cable, Unscreened, PTFE Insulation, +260°C Max
K Thermocouple Cable, Unscreened, PTFE Insulation, +260°C Max, 1/0.2mm, 100m cable, which is a high-temperature resistant cable used for measuring and transmitting temperature signals in various industrial applications. The cable consists of two conductors made of different metals, namely chromel and alumel, that are insulated from each other. The cable has a nominal diameter of 0.22mm cross-section. The cable can operate in a temperature range of -200°C to +260°C, with a maximum error of ±2.2°C or ±0.75% of the reading, whichever is greater.
Specification
Insulator: PFA
Conductor: Twin twisted
Wire: 1/0.20mm
Cross section: 0.03mm
AWG: 32
Original: $132.94
-65%$132.94
$46.53Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
K Thermocouple Cable, Unscreened, PTFE Insulation, +260°C Max, 1/0.2mm, 100m cable, which is a high-temperature resistant cable used for measuring and transmitting temperature signals in various industrial applications. The cable consists of two conductors made of different metals, namely chromel and alumel, that are insulated from each other. The cable has a nominal diameter of 0.22mm cross-section. The cable can operate in a temperature range of -200°C to +260°C, with a maximum error of ±2.2°C or ±0.75% of the reading, whichever is greater.
Specification
Insulator: PFA
Conductor: Twin twisted
Wire: 1/0.20mm
Cross section: 0.03mm
AWG: 32
