Humidity and Temperature Transmitters RHT-Wall or Duct Mount NOVUS

Highly Accurate & Configurable Monitoring for Your Environment

For precise control over your climate and processes, you need sensors you can trust. The NOVUS RHT-Wall (WM) and RHT-Duct (DM) series of humidity and temperature transmitters are engineered to deliver superior accuracy and stability for your most critical applications.

These transmitters use premium sensors to convert measured values into a reliable, linear 4 to 20 mA signal. The microprocessor-based circuit allows for full configuration of the output range using the optional TxConfig PC interface and Windows-based software, giving you complete control. Whether you need a simple wall-mounted sensor or a robust solution for air ducts, the RHT series provides the reliable and versatile performance you need.

Key Features & Benefits

• Exceptional Accuracy & Stability: Incorporates high-performance sensors for stable and accurate measurement of both relative humidity and temperature, ensuring reliable data for your systems.

• Versatile 4-20 mA Output: Provides a standard, two-wire, loop-powered 4-20 mA or 20-4 mA output signal, easily integrating with most industrial control systems and PLCs.

• Fully Configurable: The humidity signal can be configured as either a relative humidity or dew point output, giving you the flexibility to adapt the transmitter to your specific application.

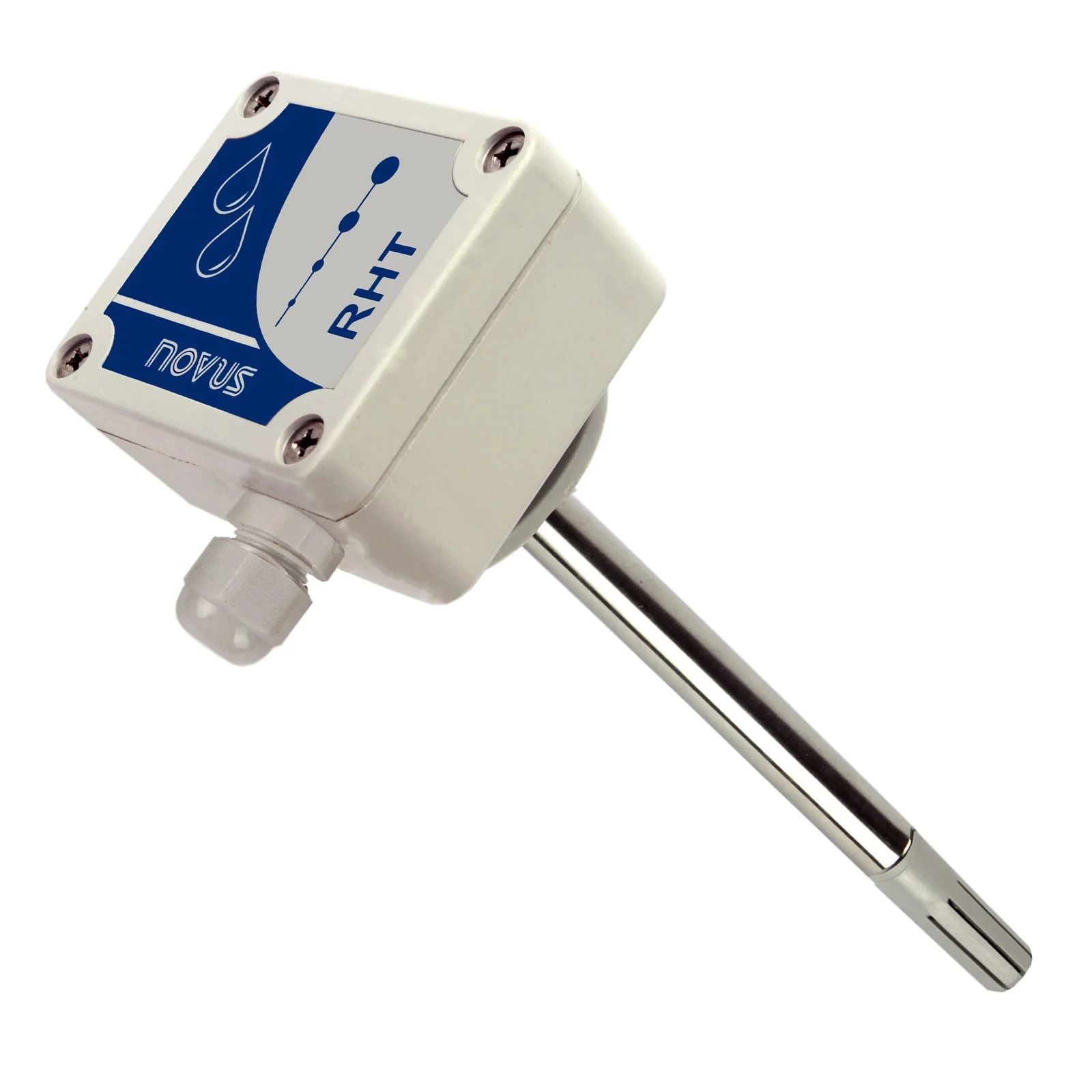

• Two Models for Easy Installation: Choose between the RHT-WM model, specifically designed for wall-mounted applications, or the RHT-DM version, which is ideal for duct and through-the-wall installations.

• Advanced Safety & Protection: Features internal protection against reversed voltage wire polarity, safeguarding the device and your system from wiring mistakes.

• Galvanic Isolation: Output signals are galvanically isolated, preventing ground loops and electrical interference between outputs.

• Durable & Secure Connections: The PG7 cable gland provides a secure and robust entry point for wiring, protecting internal components from the environment.

• Wide Operational Limits: The electronic module is rated for operation from -10 to +65°C and 0 to 95% RH, making it suitable for a broad range of industrial environments.

Technical Specifications

Feature	Specification
Input	Relative Humidity & Temperature
Output Type	Two-wire, loop-powered
Output Signal	4-20 mA or 20-4 mA (Configurable)
Power Supply	12 Vdc to 30 Vdc
Operational Limits	Electronic Module: -10 to +65°C, 0 to 95% RH
Wiring Protection	Internal reverse polarity protection
Cable Input	PG7 cable gland
Output Isolation	Isolated outputs
Configuration	PC software (TxConfig) and optional interface
Mounting	Wall (WM model) or Duct (DM model)
Dimensions	WM and DM models here
Materials	Housing (WM/DM models) in PA-GF, Rod (DM models) in SS316 or PA-GF



Model Selection Guide

• RHT-WM: Best for applications where the device is mounted on a wall or panel, such as within a cleanroom, office, or climate-controlled room.

• RHT-DM: The ideal choice for installations where the sensor needs to be inserted into a duct or through a wall to measure the environment within a closed system.

Ideal Applications

These transmitters are a powerful tool for maintaining optimal conditions in a variety of settings:

• HVAC & Building Management Systems

• Cleanrooms & Laboratories

• Data Centers

• Greenhouses & Agricultural Facilities

• Industrial Process Control

• Warehouses & Cold Storage

Choose the model that fits your needs and take control of your environment with the RHT-WM and RHT-DM transmitters.
