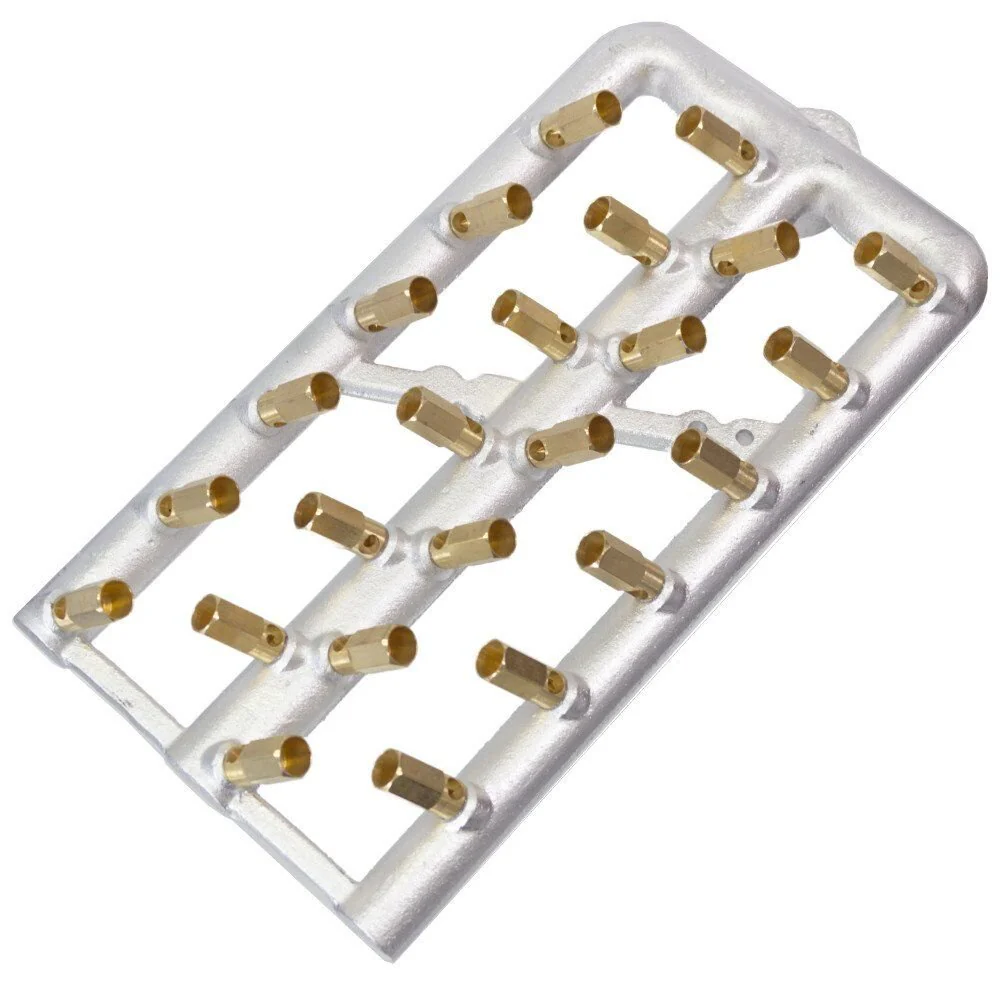

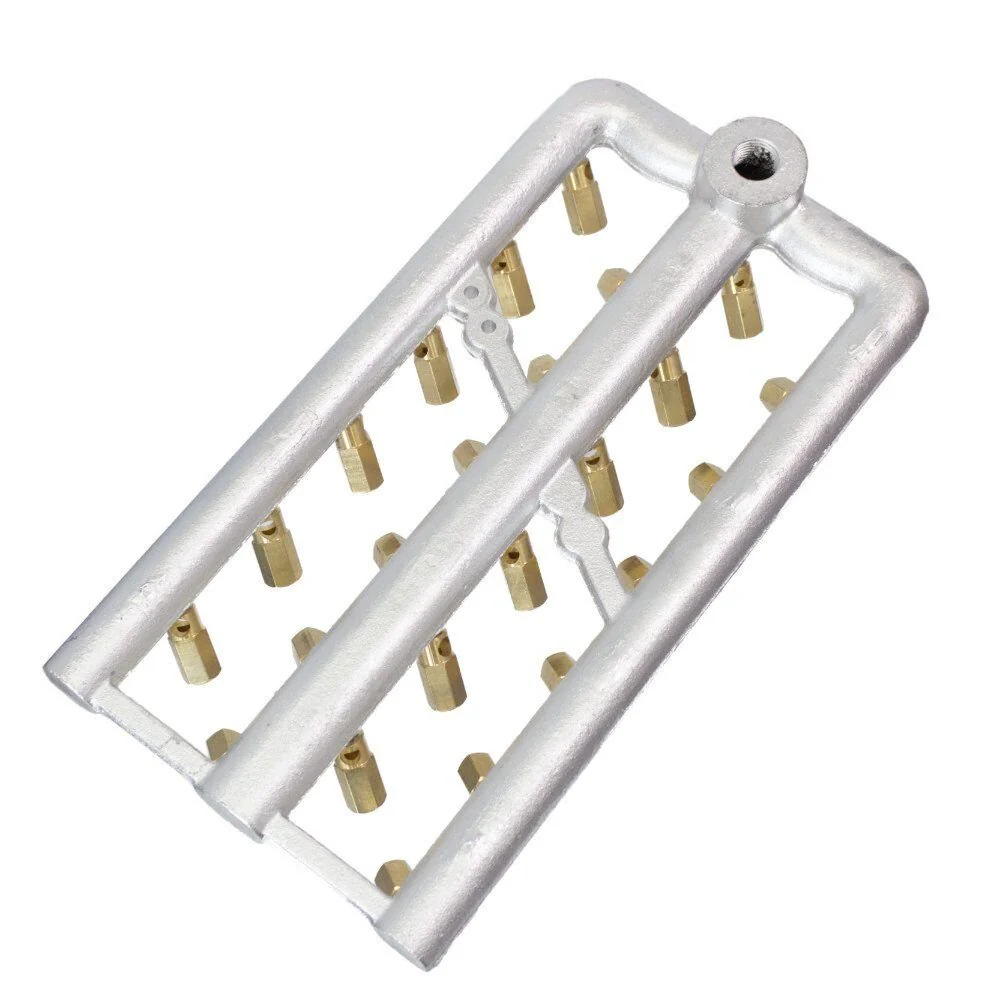

24 jet Duoflam Burner NG

Duoflam burner also used on Henny Penny fryers supplied Size 350x180x63mm, gas inlet 1/2”, for NG, 3.2kg
Specification

1. Overview: The Duoflam 24 Jet Burner is a high-performance, versatile burner designed for various industrial and commercial applications. It features 24 precision-engineered jets for efficient and uniform combustion, making it suitable for a wide range of heating processes.

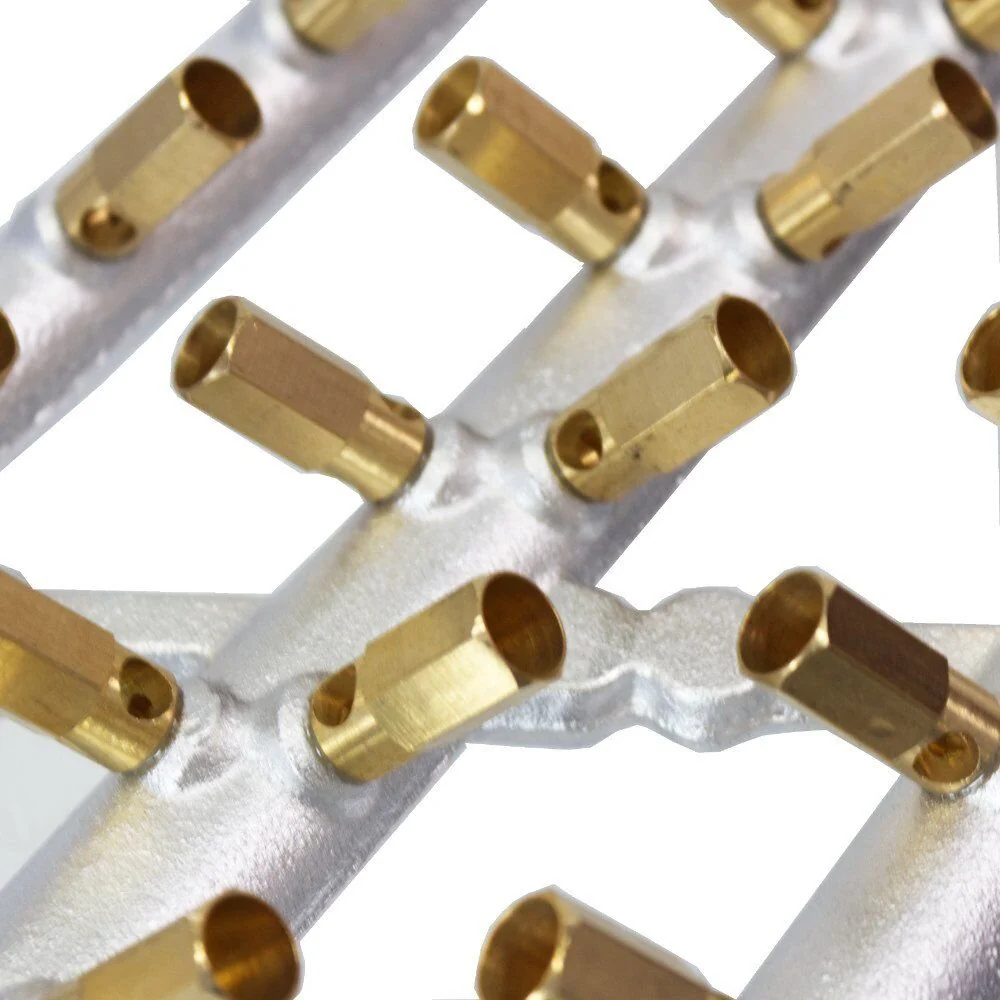

2. Key Features: a. 24 Jet Design: The burner is equipped with 24 strategically positioned jets to ensure optimal flame distribution and heat output.

b. Versatility: Suited for diverse applications, Chinese and Indian cooking including industrial furnaces, boilers, process heating, and other thermal processes.

c. Efficiency: Designed for high thermal efficiency, resulting in cost-effective and energy-efficient operations.

d. Materials: Constructed with high-quality cast iron body and brass jets to ensure durability and resistance to corrosion and high temperatures.

e. Technical Specifications: a. Heat Output: BTU 110,000

f. Fuel Type: Natural Gas.

g. Ignition System: Pilot burners

h. Flame Control: Gas control valve

i. Burner Dimensions: 350x180x63mm, 1/2" inlet
