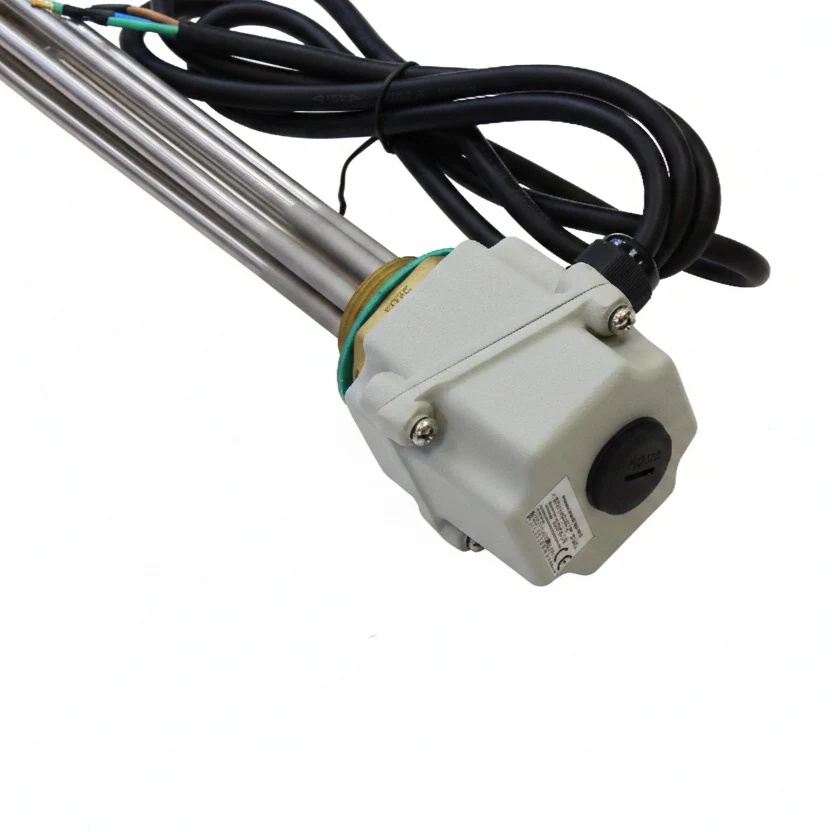

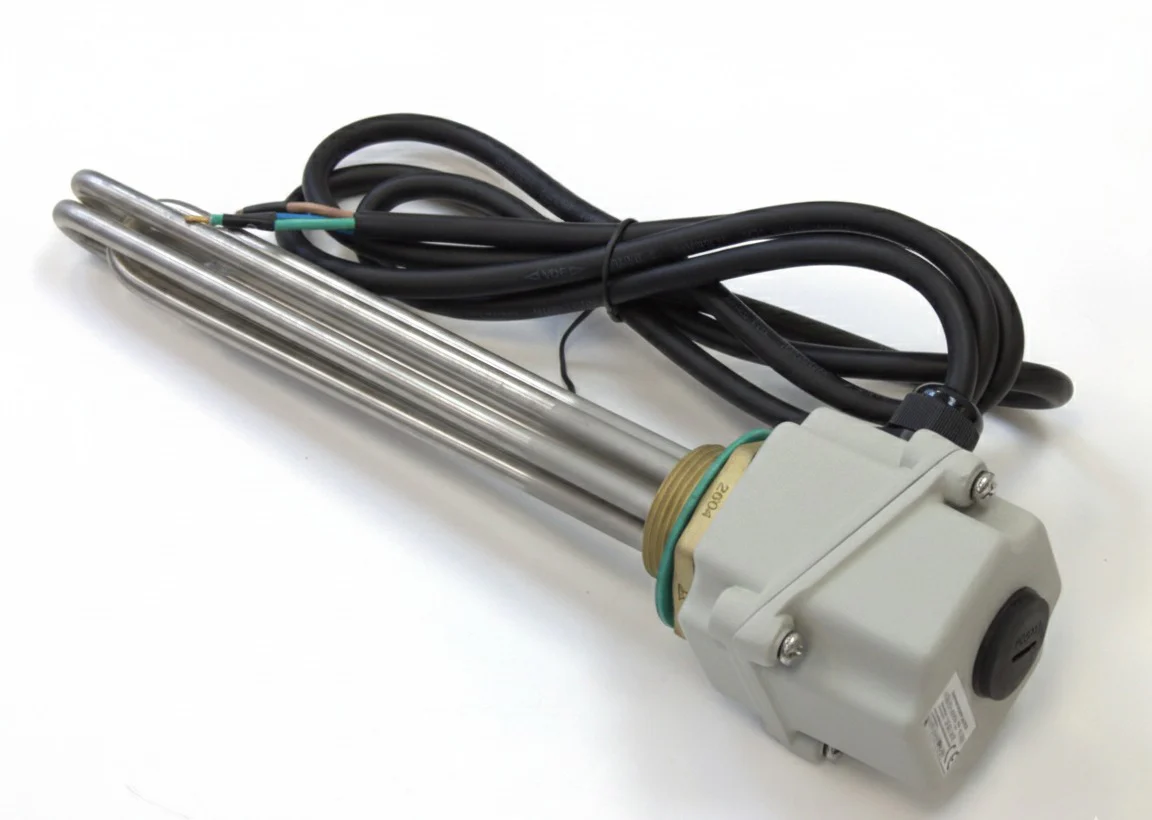

Immersion Heater: 1.5kW 230V | AISI 304 Element | G1¼" BSPP Brass Plug | IP65 Thermostat (30–90°C)

Product Description

This 1.5kW immersion heater is designed for reliable and efficient heating in commercial and light industrial applications. Built with a durable AISI 304 stainless steel element and a robust IP65-rated aluminium housing, it ensures long service life even in demanding environments.

The integrated adjustable control thermostat (30–90°C) provides precise temperature regulation, while the G1¼" BSPP brass plug allows for easy installation into standard fittings.

Engineered for safety and performance, this unit also features an asbestos-free fibre gasket and epoxy-coated housing (RAL 7035) for added durability and corrosion resistance.

Key Features

• Power: 1.5kW (1500W)

• Voltage: 230V | 50–60Hz

• Thermostat Range: 30°C to 90°C

• Element Material: AISI 304 Stainless Steel

• Plug Type: G1¼" BSPP Brass

• Protection Rating: IP65 (dust & water resistant)

• Housing: Aluminium, epoxy painted (RAL 7035)

• Cable Entry: M20 x 1.5 cable gland

• Gasket: Asbestos-free fibre

• Cold Zone: 40mm

• Element Length: 170 ±5 mm

Applications

• Water heating tanks

• Catering equipment

• Industrial fluid heating

• Process temperature control systems

Technical Notes

• Single-phase operation

• Power density approx. 9W/cm²

• Compact integrated thermostat housing for easy installation and control

• Designed for consistent heating performance and safety compliance

(Details verified from technical drawing and specification sheet on page 1 )

What’s Included

• Immersion heater unit

• Integrated adjustable thermostat

• Pre-fitted cable gland and housing
