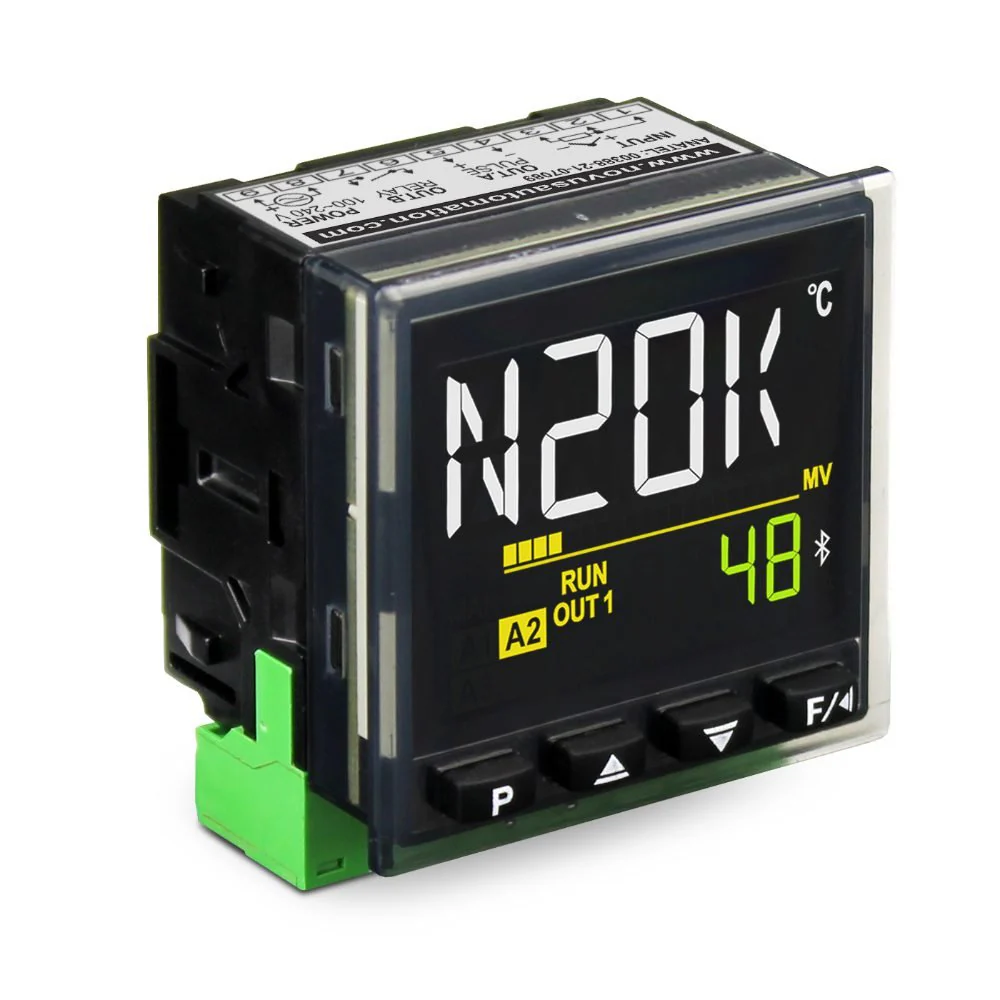

Novus Modular PID Process Controller - Base unit Relay & Pulse Output, 12-24v power supply, model N20K48, expandable modular design.

Other inputs and output available upon request such a analogue and digital options.

Global innovation product from NOVUS, available at Under Control Instruments, we are proud to release the N20K48 controller family. Its new and consistent concept is based on a compact, powerful core controller plus a growing family of micromodules that enables it to meet a wide range of application requirements in the industry. Its excellent cost-effective expansion micromodules allow for scalability of I/O, features and connectivity. In addition, it is a single controller model for all family, which avoids dealing with specific and expensive models, allowing easy spare parts inventory management.

The NOVUS ClickNGo technology for N20K48 micromodules ensures expandable capacity for more demanding applications and standardizes the learning and training of industry technical staff.

The native Bluetooth interface offers simple field diagnostic and commissioning through the QuickTune Mobile app, which reduces eventual downtime, while the USB interface provides batch configuration options, optimizing workbench series production.

With a new elegant and distinctive design, the controller features a large and bright clear-to-read display, while keeping a compact depth enclosure, making it suitable for installation in restricted spaces.

With a design focused on the best user experience, the QuickTune Mobile app provides to the user an intuitive mobile platform for configuration management for all controllers and micromodules on the shop floor.

QuickTune for Mobiles

QuickTune for Android

QuickTune for iOS

QuickTune for PC

QuickTune software download for PC

Features

Display: LCD type, alphanumeric with 11 segments.

Input Type: Thermocouple J, K, T, E, S, N, R, B, Pt100, 0-50 mV, 0-5 V, 0-10 V, 0-20 mA and 4-20 mA.

PID Features: PWM, Autotune

Control Action: 1 Loop (Heat or Cool)

Output Control:1 Pulse and up to 1 Relay

Ramp & Soak: 20 Programs, 9 Segments

Sampling Period: 18 ms

Communication: RS485 Modbus RTU (optional)

Power Consumption: 10 VA

Special Functions: Soft-Start, PID Loop Break, Ramp and Soak event, 4 Alarms (9 alarm types) and Timer Function

Configuration: Software NOVUS QuickTune, QuickTune Mobile, via USB (micro-B type) or Bluetooth

Power Supply: 100-240 Vac/dc or 12-24 Vdc (Optional)

Operate Conditions: Temperature: -20 to 60 °C (-4 to 140 °F), Humidity: 80 % @ 30 °C (86 °F)

Front Panel: IP65, Polycarbonate (PC) UL94 V-2

Enclosure: 48x48 (DIN 1/16), ABS+PC UL94 V-0

Minimum System Requirements:
- Computer with dual-core 2 GHz processor or higher.
- 4 GB RAM (8 GB recommended).
- Monitor and graphic card with 1280 x 720 minimum resolution.
- 1 GB hard disk space; Windows 8 or higher operating system.
- USB port.
- Network interface (to software features that require internet access).
Languages: Portuguese, Spanish, English, and French.
Software Upgrade: the software provides automatic updates (Internet access required)
Communication Interfaces: USB, RS485 and Ethernet
Compatible Devices:
- Controllers: N1020, N1040, N1040T, N1050, N480D, N120, N1200, N1200HC, N2000, N960 and N3000.
- Indicators: N1040i, N1540, N1500 and N1500LC.
Configuration Modes: basic, feature, cycle and favorite (custom).
Bulk Configuration: batch configuration available for all devices with embedded USB
Report: value report of all configured parameters.
Advanced Resources:
- Graphic ramp and soak assistant.
- Custom configuration with favorite parameters.
- Configuration conversion between models of the same family.
Diagnosis: graphics with PV, SP, and MV. Alarm, inputs, and outputs status available.
Device Management: Connected devices mapping to the network and custom devices grouping.
Device Firmware Update: available for all devices with embedded USB.
Auxiliary Resources:
- Sending configuration file directly to technical support.
- Access to product manuals via software.
